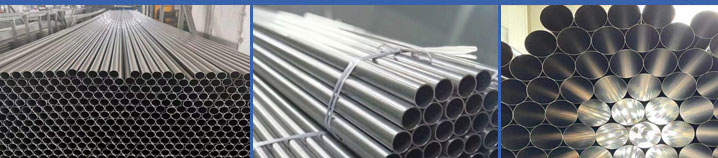

Titanium Seamless Tubes
We are specialized in exporting seamless titanium tube and pipe, and owning an annual production of 3,000 tons. Our seamless pipes and tubes feature high specific strength, corrosion resistance, good cryogenic property, low elasticity modulus, low thermal conductivity and no ferromagnetism.
Our range of seamless titanium tube and pipe sells broadly around the world. Rigid supervision is executed in terms of quality, including chemical component analysis, air pressure testing, nondestructive testing, eddy current testing and ultrasonic testing. We also have mechanical testing, covering tensile test, flaring test, flattening test, etc.
Titanium Welded Tubes
Our welded titanium pipe and welded titanium alloy pipe are produced by series of technological process, such as cold or hot molding technology, welding technology, eddy current testing, ultrasonic testing, etc. Our welded thin-wall pipe and welded thick-wall pipe feature uniform thickness, free length, good concentricity of internal and external diameter and environmental protection of its production process.
Along with the improvement of our titanium welding technology,We has achieved high efficiency, large quantity in high-precision welded titanium pipe material. With our annual production reaching 500 tons and worldwide sales, We has successfully become one of the biggest titanium welded pipe manufacturers and exporters in China.
Our corrosion-resistant welded titanium pipe has high specific strength and has been widely applied to various industries, covering oil& gas, chemical, offshore, ship-building, ocean engineering, aerospace, medical, food, electric power generation, etc.
Technical Specifications :
-
OD:2mm-219mm
-
WT:0.3mm-15.24mm
-
L:with in 18Meters
Surface Treatment:polished or according to customer's requirement.
|
Production Name
|
titanium tube
|
|
Grade
|
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
|
|
Standard
|
ASTM B337,ASTM B338,ASTM B861
|
|
Feature
|
High corrosion resistance,Low density,Good thermal stability
|
|
Packing
|
Wooden case as outside,plastic bag as inside,or Standard export packaging
|
|
Payment terms
|
T/T, Paypal, West Union.
|
Dimensions
Seamless titanium tube range:
-
OD:2.0mm-219mm
-
WT:0.3mm-120mm
-
Length: <18000mm
-
Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
Welded titanium tube range:
-
OD:6mm-219mm
-
WT:0.5mm-10mm
-
Length:<18000mm
-
Material: Gr1,Gr2,Gr3,Gr5,Gr9
Curvature Of Titanium Tube
|
Outer Diameter (mm)
|
Curvature (mm/m, not more than)
|
|
≤30
|
3
|
|
>30~110
|
4
|
ASME GR1/2 Mechanical Properties(Composition%)
|
Tensile Strength(Mpa)
|
Yield Strength 0.2%(Mpa)
|
Elongation(%)
|
|
460
|
325
|
25
|
|
