We are one of the biggest titanium mill products manufacturers in China. Our titanium wire products include titanium welding wire, titanium rack wire, titanium medical wire and titanium eyeglasses frame wire, which can be mainly applied to welding wire industry, electroplating racks, medical treatment, eyeglasses, accessories, sport goods, military industry, etc.

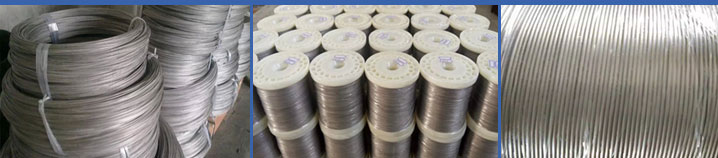

We can produce two shapes of titanium wires,round and Flat,the diameter we can supply from 0.05mm to 6mm. Titanium wire mainly applied on Welding,Medical,Industrial,Chemical and So on.
Applications:
-
Aerospace
-
Industrial, chemical, electrolysis
-
Medical
-
Medical materials
-
Spring
-
Welding
-
Welding materials
Packaging Details:
-
Initial packing is done with moisture-proof paper
-
Secondary packing is done with kraft paper
-
At third level, foam plastics are used in every side of plywood case
-
Lastly, plywood cases are used for packaging
Technical Specification :
-
Standard: ASTM B348,ASTM F136
-
Grade:Gr1, Gr2, Gr3, Gr5, Gr7, Gr9, Gr12 ect.
-
Dia:0.2-3.0mm
-
MPa:280-440
-
Straight wire or wire in coil
Chemical composition and Physical properties
Welding Products List :
|
Chemical Specification
|
Mechanical Property
|
|
UNS No.
|
ASTM B 348
|
C
|
O
|
N
|
H
|
I
|
AI
|
V
|
Tensile Strength
|
%EI.
|
|
R50100
|
GR1
|
0.03
|
0.03-0.10
|
0.012
|
0.005
|
0.08
|
|
|
180
|
37
|
|
R50120
|
GR2
|
0.03
|
0.08-0.16
|
0.015
|
0.008
|
0.12
|
|
|
240
|
28
|
|
R50125
|
GR3
|
0.03
|
0.13-0.20
|
0.02
|
0.008
|
0.16
|
|
|
340
|
26
|
|
R50130
|
GR4
|
0.03
|
0.18-0.32
|
0.025
|
0.008
|
0.25
|
|
|
550
|
23
|
|
R56400
|
GR5
|
0.03
|
0.12-0.20
|
0.030
|
0.015
|
0.22
|
5.5-6.7
|
3.5-4.5
|
1000
|
18
|
|
R52401
|
GR7
|
0.03
|
0.08-0.16
|
0.015
|
0.008
|
0.12
|
|
|
340
|
|
|
R56320
|
GR9
|
0.03
|
0.08-0.16
|
0.020
|
0.008
|
0.25
|
|
|
615
|
17
|
|
R56408
|
GR5-ELI
|
0.03
|
0.03-0.11
|
0.012
|
0.005
|
0.20
|
5.5-6.7
|
3.5-4.5
|
1000
|
18
|
Titanium Wires Dimension Tolerance :
|
Diameter
|
0.1-0.3 mm
|
0.3-0.8 mm
|
0.8-2.0 mm
|
2.0-6.0 mm
|
|
Tolerance
|
+/- 0.025
|
+/-0.04
|
+/-0.05
|
+/-0.10
|
|
Length
|
200-500 mm
|
500-1000 mm
|
1000-2000 mm
|
&2000 mm
|
|
Tolerance
|
+/-1.0
|
+/-1.5
|
+/-2.0
|
+/-2.5
|
-
Wire Further Processing
-
Cut to length Wire
-
Flat Wire
-
Square and Shaped Wire
-
Rewinding and spooling
-
Polishing and cleaning
Material Test Certificate supplied :
|
Mechanical Property of Titanium Wire in Room Temperature
|
|
Grade
|
Tensile Strength,Mpa(>)
|
Elongation,%(>)
|
|
Grade 1
|
370
|
18
|
|
Grade 2
|
440
|
15
|
|
Grade 3
|
540
|
15
|
|
Grade 5
|
895
|
10
|
|
