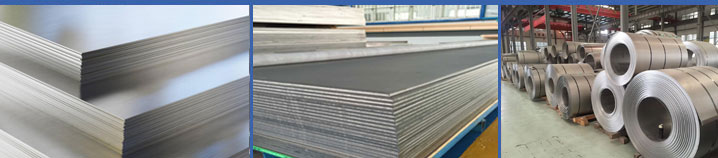

Our range of titanium sheet and plate is generally produced in accordance with standards such as ASTM/ASME
B/SB265, F136, ASTM F67, AMS 4911, and AMS 4900. Our annual production of titanium sheets
and plates is 5,000 tons, including 1,000 tons for PHE (plate for heat exchanger), and 4,000 tons for other
applications.Our high quality titanium sheets and plates, including cold rolled titanium sheets and hot rolled
titanium plates, are under strict tracking and check in terms of raw material -- titanium sponge. We can control
the whole process, such as the melting, forging, hot rolling, cold rolling, heat treatment, etc. We export products
around the world and warmly welcome you to cooperate with us.
Size range
|
|
Cold rolling
|
Hot rolling
|
|
Thickness
|
0.4mm~5mm
|
5mm~30mm
|
|
Width
|
1,250mm max
|
3,000mm max
|
|
Length
|
3,000mm max
|
7,000mm max
|
Chemical Requirements
|
Element
|
Composition,％
|
|
Grade1
|
Grade2
|
Grade2H
|
Grade3
|
Grade4
|
Grade5
|
Grade7
|
Grade9
|
Grade12
|
|
Nitrogen,max
|
0.03
|
0.03
|
0.03
|
0.05
|
0.05
|
0.05
|
0.03
|
0.03
|
0.03
|
|
Carbon,max
|
0.08
|
0.08
|
0.08
|
0.08
|
0.08
|
0.08
|
0.08
|
0.08
|
0.08
|
|
Hydrogen,max
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
0.015
|
|
Iron,max
|
0.20
|
0.30
|
0.25
|
0.35
|
0.40
|
0.40
|
0.25
|
0.15
|
0.30
|
|
Oxygen,max
|
0.18
|
0.25
|
0.25
|
0.35
|
0.40
|
0.20
|
0.25
|
0.15
|
0.25
|
|
Aluminum
|
…
|
…
|
…
|
…
|
…
|
5.5~6.75
|
…
|
2.5~3.5
|
…
|
|
Vanadium
|
…
|
…
|
…
|
…
|
…
|
3.5~4.5
|
…
|
2.0~3.0
|
…
|
|
Palladium
|
…
|
…
|
…
|
…
|
…
|
0.12~0.25
|
…
|
…
|
…
|
|
Molybdenum
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
0.2~0.4
|
|
Nickel
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
…
|
0.6~0.9
|
|
Residuals,D.E.F
max each
|
0.1
|
0.1
|
0.1
|
0.1
|
0.1
|
0.1
|
0.1
|
0.1
|
0.1
|
|
Residuals,D.E.F
max total
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
0.4
|
|
TitaniumG
|
balance
|
balance
|
balcan
|
balance
|
balance
|
balance
|
balance
|
balance
|
balance
|
D Need not be reported
E A residual is an element present in a metal or an alloy in small quantities and is inherent to the manufacturing
process but not added intentionally.In titanium these elements include aluminum.vandium,tin,chromium,
molybdenum,niobium,zirconium,hafnium,bismuth,ruthenium,palladium,yttrium, copper, silicon,cobalt,tantalum,
nickel,boron,manganese,and tungsten.
F The purchaser may,in his written purchase order request analysis for specific residual elements not listed in this
specification.
G The percentage of titanium is determined by difference.
Tensile Requirements
|
Grade
|
Tensile Strength,min
|
Yield Strength,0.2%Offset
|
Elongation in 2 in.or 50mm,min,%
|
|
kis
|
MPa
|
min
|
max
|
|
kis
|
MPa
|
kis
|
MPa
|
|
1
|
35
|
240
|
20
|
138
|
45
|
310
|
24
|
|
2
|
50
|
345
|
40
|
275
|
65
|
450
|
20
|
|
2HCD
|
58
|
400
|
40
|
275
|
65
|
450
|
20
|
|
3
|
65
|
450
|
55
|
380
|
80
|
550
|
18
|
|
4
|
80
|
550
|
70
|
483
|
95
|
655
|
15
|
|
5
|
130
|
895
|
120
|
828
|
…
|
…
|
10 E
|
|
7
|
50
|
345
|
40
|
793
|
65
|
450
|
20
|
|
9
|
90
|
620
|
70
|
483
|
…
|
…
|
15 F
|
|
12
|
70
|
483
|
50
|
345
|
…
|
...
|
18
|
C Material is identical to the corresponding numeric grade(that is,Grade 2H=Grade 2)except for the higher
guaranteed minimum UTS,and may always be certified as meeting the requirements of its corresponding numeric
grade,Grade 2H,7H,16H,and 26H are intended primarily for pressure vessel use.
D The H grades were added in response to a user association request based on its study of over 5200
commercial Grade 2,7,16, and 26 test reports,where over 99% met the 58 ksi minimum UTS.
E For Grades 5,6 and 32 the elongation on materials under 0.025in.(0.635mm)in thickness may be obtained only
by negotiation.
F Flongation for continuous rolled and annealed(strip product from coil) for Grade 18 shall be 12%minimum in the
longitudinal direction and 8% minimum in the transverse directio.
|
