We offer and supply titanium fasteners which contain screw, bolt, stud, threaded
rod, nut, washer and custom made special form according to DIN, ISO, ASME, JIS
and other international specifications.
Compare
to other metals such as stainless steel, aluminum and copper, titanium has a
higher value and price. Moreover, because of its excellent anti-corrosion
performance, high tensile, light weight, superiorbiocompatibility, titanium
fasteners mainly are applied to high-tech areas, such as airplane, racing car,
automobile, high-end bicycle, chemical & petrochemical, human implants, and
so on.
To
achieve the high precision requires, our titanium bolt/screw, nut and washer
are produced by the following manufacturing techniques:
● Lathing and CNC
lathing - for surface and threads
● Milling and CNC
milling - for screw’s head
● Drilling and
punching - for washers
● Threads rolling - for
threads
Finished
titanium fasteners will be appropriately heat treated to relief residual stress
and inspected by Go/no go gauge for every piece.

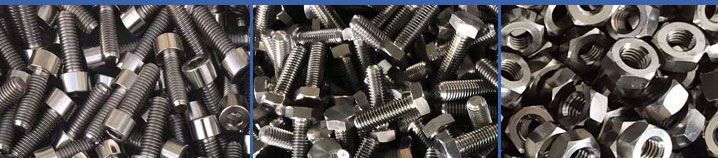

Common types
▲
Heads of bolt and screw - hexagon, hex flange, spherical, cap, square, pan,
(raised) countersunk, tapered, button
▲Threads
of bolt and screw - full threaded, half threaded
▲
Drive inserts of screw - hex socket, square socket, slotted, torx, cross
recessed
▲
Stud - threaded, double end threaded
▲
Nut - hex, hex flange, hex thin, square, cap
▲ Washer
- plain, flat, spring
Major grades
Commercially
pure (Grade 1-Grade 4)
Ti-6Al-4V
(Grade 5 and 23)
Ti-Pd
(Gr7)
Ti-3Al-2.5V
(Gr9)
Ti-0.3Mo-0.8Ni
(Gr12)
Please
contact us for grades unlisted above
Typical specification
DIN
(912, 931, 933, 934, 125, etc.)
ISO
(4014, 4017, 4032, 4035, etc.)
ASME
(B18.2.1, B18.2.2, B18.2.3, etc)
|
